cc-oci-runtime is an OCI compatible container runtime and is responsible for handling all commands specified by the OCI runtime specification and launching cc-shim instances.

Here we will describe how cc-oci-runtime handles the most important OCI commands.

create

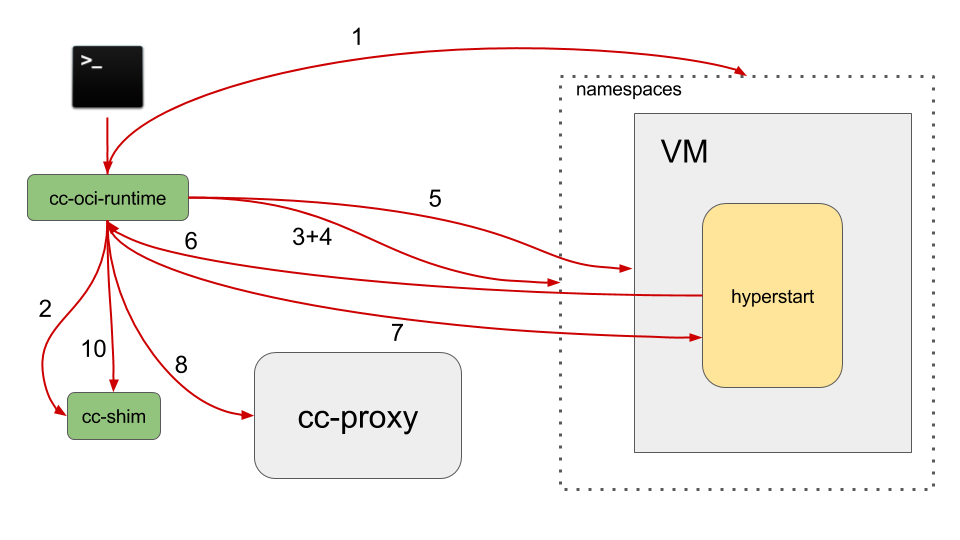

When handling the OCI create command, cc-oci-runtime goes through the following steps:

1. Create the container namespaces (Only the network and mount namespaces are currently supported), according to the container OCI configuration file.
2. Spawn the cc-shim process and have it wait on a couple of temporary pipes for:
   • A cc-proxy created file descriptor (one end of a socketpair) for the shim to connect to.
   • The container hyperstart sequence numbers for at most 2 I/O streams (One for stdout and stdin, one for stderr). hyperstart uses those sequence numbers to multiplex all streams for all processes through one serial interface (The virtio I/O serial one).
3. Run all the OCI hooks in the container namespaces, as described by the OCI container configuration file.
4. Set up the container networking. This must happen after all hooks are done as one of them is potentially setting the container networking namespace up.
5. Create the virtual machine running the container process. The VM systemd instance will spawn the hyperstart daemon.
6. Wait for hyperstart to signal that it is ready.
7. Send the pod creation command to hyperstart. The hyperstart pod is the container process sandbox.
8. Send the allocateIO command to the proxy, for getting the hyperstart I/O sequence numbers described in step 2.
9. Pass the cc-proxy socketpair file descriptor, and the I/O sequence numbers to the listening cc-shim process through the dedicated pipes.
10. The cc-shim instance is put into a stopped state to prevent it from doing I/O before the container is started.

At that point, the container sandbox is created in the virtual machine and cc-shim is stopped on the host. However the container process itself is not yet running as one needs to call docker start to actually start it.

start

On namespace containers start launches a traditional Linux container process in its own set of namespaces. With Clear Containers, the main task of cc-oci-runtime is to create and start a container within the pod that got created during the create step. In practice, this means cc-oci-runtime follows these steps:

1. cc-oci-runtime connects to cc-proxy and sends it the attach command to let it know which pod we want to use to create and start the new container.
2. cc-oci-runtime sends a hyperstart NEWCONTAINER command to create and start a new container in a given pod. The command is sent to cc-proxy who forwards it to the right hyperstart instance running in the appropriate guest.
3. cc-oci-runtime resumes cc-shim so that it can now connect to the cc-proxy and acts as a signal and I/O streams proxy between containerd-shim and cc-proxy.

exec

docker exec allows one to run an additional command within an already running container. With Clear Containers, this translates into sending a EXECCMD command to hyperstart so that it runs a command into a running container belonging to a certain pod. All I/O streams from the executed command will be passed back to Docker through a newly created cc-shim.

The exec code path is partly similar to the create one and cc-oci-runtime goes through the following steps:

1. cc-oci-runtime connects to cc-proxy and sends it the attach command to let it know which pod we want to use to run the exec command.
2. cc-oci-runtime sends the allocateIO command to the proxy, for getting the hyperstart I/O sequence numbers for the exec command I/O streams.
3. cc-oci-runtime sends an hyperstart EXECMD command to start the command in the right container The command is sent to cc-proxy who forwards it to the right hyperstart instance running in the appropriate guest.
4. Spawn the cc-shim process for it to forward the output streams (stderr and stdout) and the exec command exit code to Docker.

Now the exec‘ed process is running in the virtual machine, sharing the UTS, PID, mount and IPC namespaces with the container’s init process.

kill

When sending the OCI kill command, container runtimes should send a UNIX signal to the container process. In the Clear Containers context, this means cc-oci-runtime needs a way to send a signal to the container process within the virtual machine. As cc-shim is responsible for forwarding signals to its associated running containers, cc-oci-runtime naturally calls kill on the cc-shim PID.

However, cc-shim is not able to trap SIGKILL and SIGSTOP and thus cc-oci-runtime needs to follow a different code path for those 2 signals. Instead of kill‘ing the cc-shim PID, it will go through the following steps:

1. cc-oci-runtime connects to cc-proxy and sends it the attach command to let it know on which pod the container it is trying to kill is running.
2. cc-oci-runtime sends an hyperstart KILLCONTAINER command to kill the container running on the guest. The command is sent to cc-proxy who forwards it to the right hyperstart instance running in the appropriate guest.

delete

docker delete is about deleting all resources held by a stopped/killed container. Running containers can not be deleted unless the OCI runtime is explictly being asked to. In that case it will first kill the container and only then delete it.

The resources held by a Clear Container are quite different from the ones held by a host namespace container e.g. run by runc. cc-oci-runtime needs mostly to delete the pod holding the stopped container on the virtual machine, shut the hypervisor down and finally delete all related proxy resources:

1. cc-oci-runtime connects to cc-proxy and sends it the attach command to let it know on which pod the container it is trying to to delete is running.
2. cc-oci-runtime sends an hyperstart DESTROYPOD command to destroy the pod holding the container running on the guest. The command is sent to cc-proxy who forwards it to the right hyperstart instance running in the appropriate guest.
3. After deleting the last running pod, hyperstart will gracefully shut the virtual machine down.
4. cc-oci-runtime sends the BYE command to cc-proxy, to let it know that a given virtual machine is shut down. cc-proxy will then clean all its internal resources associated with this VM.
