Shim

Docker’s containerd-shim is designed around the assumption that it can monitor and reap the actual container process. As containerd-shim runs on the host, it can not directly monitor a process running within a virtual machine. At most it can see the QEMU process, but that is not enough. With Clear Containers, cc-shim acts as the container process that containerd-shim can monitor. Therefore cc-shim needs to handle all container I/O streams (stdout, stdin and stderr) and forward all signals containerd-shim decides to send to the container process.

cc-shim has an implicit knowledge about which VM agent will handle those streams and signals and thus act as an encapsulation layer between containerd-shim and hyperstart:

• It fragments and encapsulates the standard input stream from containerd-shim into hyperstart stream packets:

  ┌───────────────────────────┬───────────────┬────────────────────┐
  │ IO stream sequence number │ Packet length │ IO stream fragment │
  │         (8 bytes)         │    (4 bytes)  │                    │
  └───────────────────────────┴───────────────┴────────────────────┘


• It de-encapsulates and assembles standard output and error hyperstart stream packets into an output stream that it forwards to containerd-shim
• It translates all UNIX signals (except SIGKILL and SIGSTOP) into hyperstart KILLCONTAINER commands that it sends to the VM via cc-proxy UNIX named socket.

The IO stream sequence numbers are passed from cc-runtime to cc-shim when the former spawns the latter. They are generated by hyperstart and cc-oci-runtime fetches them by sending the AllocateIO command to cc-proxy.

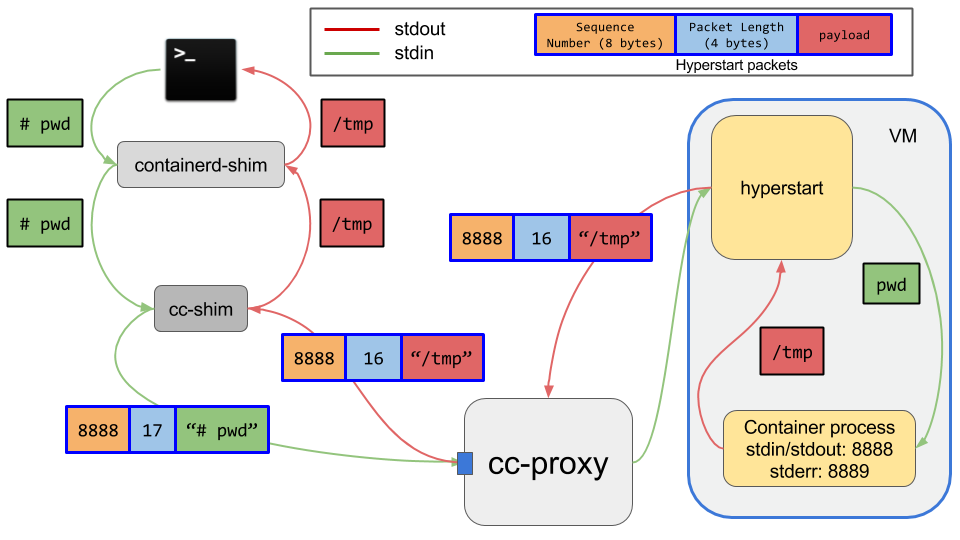

As an example, let’s say that running the pwd command from a container standard input will generate /tmp from the container standard output. hyperstart assigned this specific process 8888 and 8889 respectively as the stdin, stdout and stderr sequence numbers. With cc-shim and Clear Containers, this example would look like:
